T Series Wireless Release Systems
T4300 Wireless Release Systems |
|
|

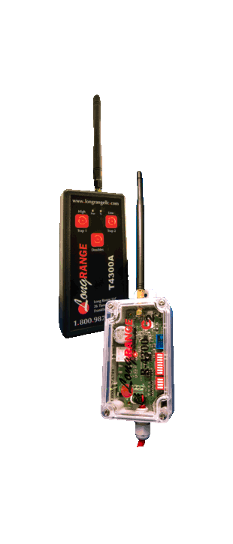

T4300A Wireless Release System - 1 Trap |
|
|
The Long Range T4300A Wireless Release System is made up of the T4300A Digital Transmitter and one R4300 Digital Receiver.
Features:
- New key pad overlay with built in LED's offer a longer life and better water resistance than regular push buttons.
- Operates two R4300 receivers to give singles, report or true pairs
- Secure communication - 127 available channel settings allow the R4300 receivers to be used on adjacent stations with no interference
- With no On/Off switch, the T4300A has instant "On" and transmit, saving battery power
- Operates on a single 9 volt battery and has an operating distance in excess of 400 yards
- Expandable to two traps by adding another R4300 receiver
|
|
|
|
|

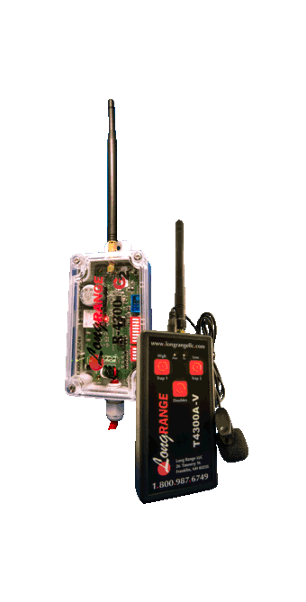

T4300A-V Wireless Voice Release System - 1 Trap |
|
|
The Long Range T4300A-V Wireless Voice Release System is made up of the T4300A-V Digital Transmitter with Microphone and one R4300 Digital Receiver. The T4300A-V is a great way to practice if you are by yourself. The voice circuitry is built into the main board of the T4300A-V, keeping the unit compact and light.
Features:
- New key pad overlay with built in LED's offer a longer life and better water resistance than regular push buttons.
- Will launch singles, report or true pairs
- Remove the microphone and the unit reverts back to a regular T4300A
- Unique "Lock On" feature enables you to choose either Trap 1 or Trap 2 or Doubles and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
- Uses one R4300 Digital Receiver
- Secure communication - 127 available channel settings allow the R4300 receivers to be used on adjacent stations with no interference
- With no On/Off switch, the T4300A has instant "On" and transmit, saving battery power
- Operates on a single 9 volt battery and has an operating distance in excess of 400 yards
- If your skeet club has the Long Range TargetKey or TargetTag counter system installed, ask about the T4300A-V voice release unit that plugs directly into the counter unit
- Expandable to two traps by adding a second R4300 receiver
|
|
|
 |

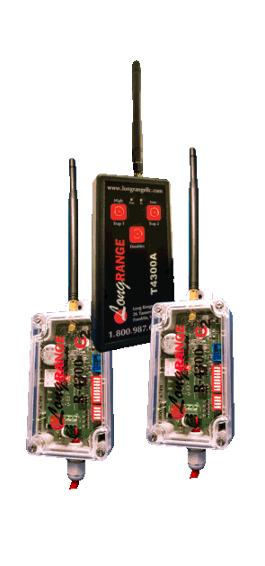

TT4300A Wireless Release System - 2 Traps |
|
|
The Long Range TT4300A Wireless Release System is made up of the T4300A Digital Transmitter and two R4300 Digital Receivers.
Features:
- New key pad overlay with built in LED's offer a longer life and better water resistance than regular push buttons.
- Operates two R4300 receivers to give singles, report or true pairs
- Secure communication - 127 available channel settings allow the R4300 receivers to be used on adjacent stations with no interference
- With no On/Off switch, the T4300A has instant "On" and transmit, saving battery power
- Operates on a single 9 volt battery and has an operating distance in excess of 400 yards
|
|
|
 |
TT4300A-V Wireless Voice Release System - 2 Traps |
|
|
The Long Range TT4300A-V Wireless Voice Release System is made up of the T4300A-V Digital Transmitter with Microphone and two R4300 Digital Receivers. The T4300A-V is a great way to practice if you are by yourself. The voice circuitry is built into the main board of the T4300A-V, keeping the unit compact and light.
Features:
- New key pad overlay with built in LED's offer a longer life and better water resistance than regular push buttons.
- Will launch singles, report or true pairs
- Remove the microphone and the unit reverts back to a regular T4300A
- Unique "Lock On" feature enables you to choose either Trap 1 or Trap 2 or Doubles and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
- Uses two R4300 Digital Receivers
- Secure communication - 127 available channel settings allow the R4300 receivers to be used on adjacent stations with no interference
- With no On/Off switch, the T4300A has instant "On" and transmit, saving battery power
- Operates on a single 9 volt battery and has an operating distance in excess of 400 yards
- If your skeet club has the Long Range TargetKey or TargetTag counter system installed, ask about the T4300A-V voice release unit that plugs directly into the counter unit
|
|
|
T-1WF Wobble Trap Wireless Release Systems |
|
|

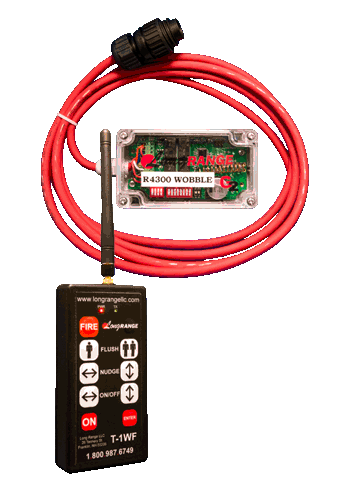

T-1WF Wobble Function Wireless Release System |
|
|
The T-1WF is the perfect companion to any wobble trap! It includes a T-1WF Wobble Function Transmitter and a R4300W Wobble Receiver. Use the Nudge buttons to adjust the wobble trap by small increments vertically or horizontally. Continuously oscillate the wobble trap by using the On/Off buttons.
Features:
- Includes a preprogrammed Flush Mode which will continuously throw targets every 2 or 4 seconds.
- By using the 127 available field/channel settings the T1WF and R4300 Wobble Receiver can be used on adjacent stations with no interference.
- Works only with R4300 Wobble receivers.
- Operates on a single 9 volt battery.
- Tri-Axis Wobble Function Transmitter option available for the same price
|
|
|
|
|

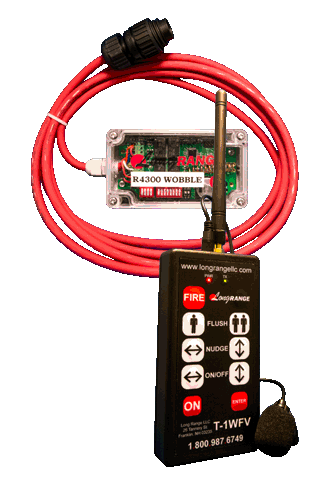

T-1WFV Wobble Function Wireless Voice Release System |
|
|
The T-1WFV is the perfect companion to any wobble trap and includes voice activation! It includes the T-1WFV Wobble Function Voice Transmitter and an R4300W Wobble Receiver. Use the Nudge buttons to adjust the wobble trap by small increments vertically or horizontally. Also, continuously oscillate the wobble trap by using the On/Off buttons. Call for targets with the sound of your voice with the included lapel microphone.
Features:
- Includes a preprogrammed Flush Mode which will continuously throw targets every 2 or 4 seconds.
- Remove the microphone and the unit reverts back to a regular T-1WF.
- Unique "Lock On" feature enables you to lock the fire command and just keep calling for the target. Eliminates the need to keep pressing the Fire button to arm the unit.
- By using the 127 available field/channel settings the T1WF and R4300W Wobble Receiver can be used on adjacent stations with no interference..
- Works only with R4300 Wobble receivers.
- Operates on a single 9 volt battery.
- Tri-Axis Wobble Function Transmitter option available for the same price
|
|
|
T-3 Wireless Release Systems |
|
|

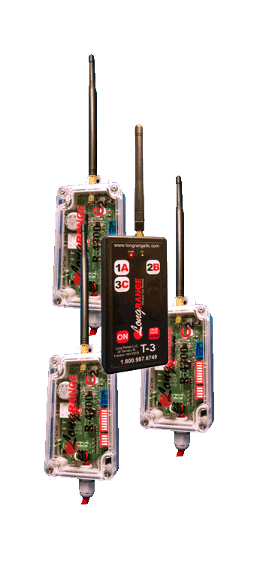

T-3 Wireless Release System - 3 Traps |
|
|
Long Range now offers 3 trap transmitters, built with the same features and technology as the T-8 digital transmitter. This system includes the T-3 Digital Transmitter and three R4300 Digital Receivers
Features:
- Will launch singles, true pairs and report pairs
- Pressing the "True Pair" button allows you to select multiple traps and fire them simultaneously by again pressing the "True Pair" button
- Operates up to 3 machines
- Works with R4300 receivers
- Unique "Lock On" feature enables you to choose any of the traps and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
|
Price: $736
T-3 Transmitter Only: $260 |
|
|

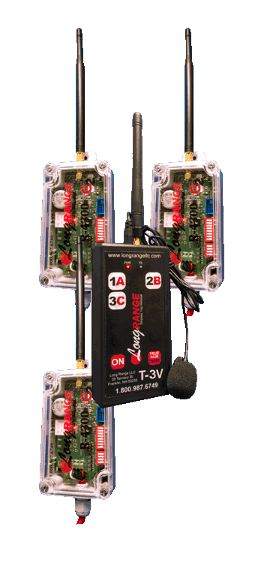

T-3 Wireless Voice Release System - 3 Traps |
|
|
Long Range now offers 3 trap voice transmitters, built with the same features and technology as the T-8 digital voice transmitter. This system includes the T-3 Digital Voice Transmitter and three R4300 Digital Receivers and a lapel microphone.
Features:
- Will launch singles, true pairs and report pairs
- Pressing the "True Pair" button allows you to select multiple traps and fire them simultaneously by again pressing the "True Pair" button
- Remove the microphone and the unit reverts back to a regular transmitter
- Operates up to 3 machines
- Works with R4300 receivers
- Unique "Lock On" feature enables you to choose any of the traps and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
|
Price: $782
T-3 Voice Transmitter Only: $306 |
T-4 Wireless Release Systems |
|
|

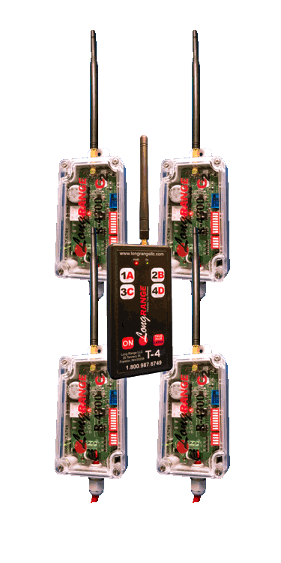

T-4 Wireless Release System - 4 Traps |
|
|
Long Range now offers 4 trap transmitters, built with the same features and technology as the T-8 digital transmitter. This system includes the T-4 Digital Transmitter and four R4300 Digital Receivers
Features:
- Will launch singles, true pairs and report pairs
- Pressing the "True Pair" button allows you to select multiple traps and fire them simultaneously by again pressing the "True Pair" button
- Operates up to 4 machines
- Works with R4300 receivers
- Unique "Lock On" feature enables you to choose any of the traps and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
|
Price: $932
T-4 Transmitter Only: $284 |
|
|

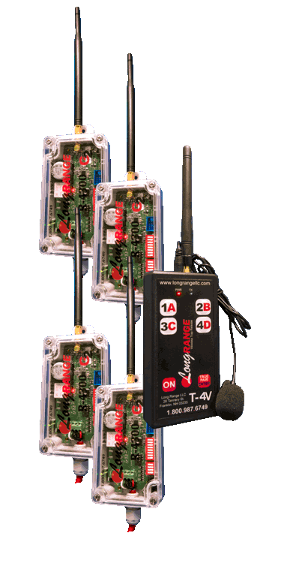

T-4 Wireless Voice Release System - 4 Traps |
|
|
Long Range now offers 4 trap voice transmitters, built with the same features and technology as the T-8 digital voice transmitter. This system includes the T-4 Digital Voice Transmitter and four R4300 Digital Receivers and a lapel microphone.
Features:
- Will launch singles, true pairs and report pairs
- Pressing the "True Pair" button allows you to select multiple traps and fire them simultaneously by again pressing the "True Pair" button
- Remove the microphone and the unit reverts back to a regular transmitter
- Operates up to 4 machines
- Works with R4300 receivers
- Unique "Lock On" feature enables you to choose any of the traps and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
|
Price: $973
T-4 Voice Transmitter Only: $330 |
T-6 Wireless Release Systems |
|
|

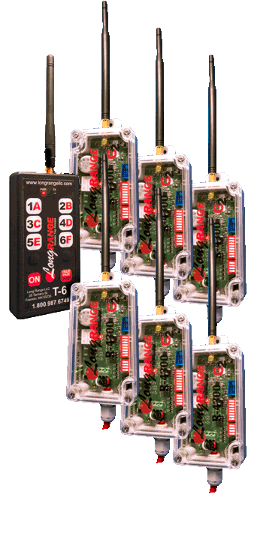

T-6 Wireless Release System - 6 Traps |
|
|
Long Range now offers 6 trap transmitters, built with the same features and technology as the T-8 digital transmitter. This system includes the T-6 Digital Transmitter and six R4300 Digital Receivers
Features:
- Will launch singles, true pairs and report pairs
- Pressing the "True Pair" button allows you to select multiple traps and fire them simultaneously by again pressing the "True Pair" button
- Operates up to 6 machines
- Works with R4300 receivers
- Unique "Lock On" feature enables you to choose any of the traps and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
|
Price: $1,285
T-6 Transmitter Only: $306 |
|
|

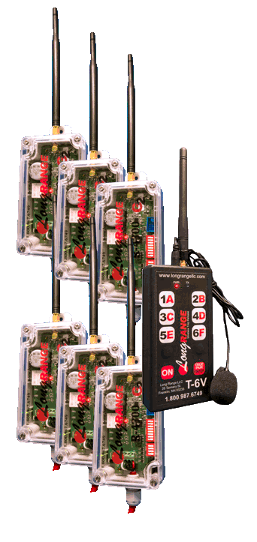

T-6 Wireless Voice Release System - 6 Traps |
|
|
Long Range now offers 6 trap voice transmitters, built with the same features and technology as the T-8 digital voice transmitter. This system includes the T-6 Digital Voice Transmitter and six R4300 Digital Receivers and a lapel microphone.
Features:
- Will launch singles, true pairs and report pairs
- Pressing the "True Pair" button allows you to select multiple traps and fire them simultaneously by again pressing the "True Pair" button
- Remove the microphone and the unit reverts back to a regular transmitter
- Operates up to 6 machines
- Works with R4300 receivers
- Unique "Lock On" feature enables you to choose any of the traps and just keep calling for the target. Eliminates the need to keep pressing buttons to arm the unit
|
Price: $1,340
T-6 Voice Transmitter Only: $350 |
T-8 Wireless Release Systems |
 |
T-8 Wireless Release Systems |

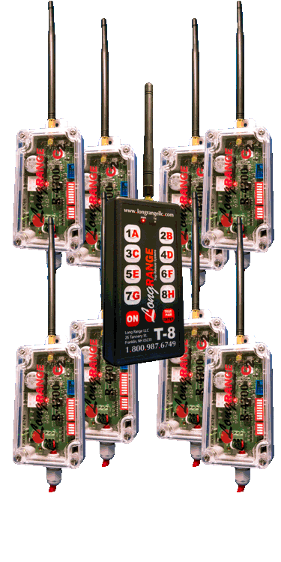

(Part# T-8AP6 shown in the picture) |
The Long Range T-8 system is built to the same specifications as the T4300A system, with a twist, it is able to launch 8 machines all at the same time. This is a great system for 5 stand.
Features:
- Press the "True Pair" button, press the numbers of the traps you want to fire and press the "True Pair button again; Every trap you pressed will fire together
- The "Lock On" feature enables repeated throws of up to all 8 machines
- A very simple and easy-to-use system for 5 Stand or FITASC
- Operates up to 8 R4300 receivers
- Secure communication - 127 available channel settings allow the R4300 receivers to be used on adjacent stations with no interference
- Operates on a single 9 volt battery and has an operating distance in excess of 400 yards
- Model T-8AP6 includes the T-8A transmitter and 6 R4300 receivers
- Model T-8AP8 includes the T-8A transmitter and 8 R4300 receivers
|
T-8 Package w/ 6 Receivers: $1,305
T-8 Package w/ 8 Receivers: $1,625
T-8 Transmitter Only: $330 |
 |
T-8 Wireless Voice Release Systems |

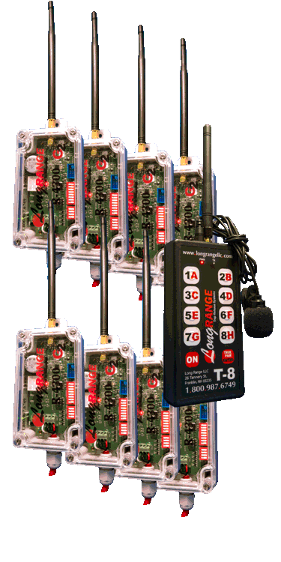

(Part# T-8A-VP6 shown in the picture) |
All of the features of the regular Long Range T-8 system with the added benefit of voice operation. The voice circuitry is built into the main board of the T-8A transmitter, keeping the unit lightweight and compact. This is a great voice release system for 5 stand.
Features:
- Press the "True Pair" button, press the numbers of the traps you want to fire and press the "True Pair button again; Every trap you pressed will fire together
- The "Lock On" feature enables repeated throws of up to all 8 machines. Eliminates the need to keep pressing buttons to arm the unit.
- A very simple and easy-to-use system for 5 Stand or FITASC
- Remove the microphone and it reverts back to a regular T-8 system
- Operates up to 8 R4300 receivers
- Secure communication - 127 available channel settings allow the R4300 receivers to be used on adjacent stations with no interference
- Operates on a single 9 volt battery and has an operating distance in excess of 400 yards
- Model T-8A-VP6 includes the T-8A-V transmitter and 6 R4300 receivers
- Model T-8A-VP8 includes the T-8A-V transmitter and 8 R4300 receivers
|
T-8 Voice Package with 6 Receivers: $1,377
T-8 Voice Package with 8 Receivers: $1,670
T-8 Voice Transmitter Only: $374 |
The Components

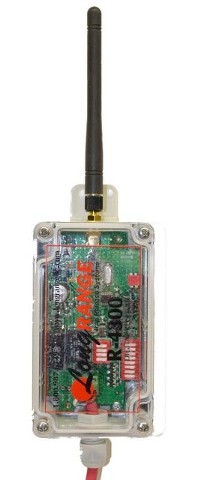

4300 Series Receivers |
 |
|
|
|
The common component of the 4300 Series is the R4300 Digital Receiver. This is used with all of the 4300 transmitters and the TargetTag Counter System.
The R4300 Receiver can operate any trap whether it is powered by a 12v battery or 110 or 240 volts AC.
Now with "Link Mode" there is no need to set dip switches. Or dip switches can still be used for backward compatibility.
0 can operate 15 traps on each of 255 channels. Each channel is a different frequency so it wil1l not cause interference on adjacent fields. |
|
|
 |

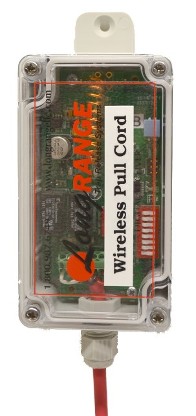

R4300WPC Wireless Pull Cord |
|
|
The wireless pull cord is designed to be used with the T4300A and T4300A-V voice activated transmitter. A favorite with skeet shooters, it does away with dragging a regular pull cord around the field.
When used with the TargetTag Counter System no external power is required. Otherwise a 12v DC power supply is needed (12v transformer supplied with receiver on request).
Features:
- Operates 2 machines
- No delay
- Internal antenna
- Voice compatible
|
|
|
 |
|

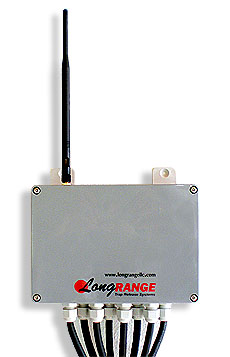

(Part# R4300H8 shown in the picture) |
If you have all of your 5 Stand release cords wired back to a central point the Receiver Hub provides a cost saving solution. The Receiver Hub is available in 4, 8 and 15 trap versions.
Old Winchester 110v machines, as well as the latest 12v sporting machines can all be connected to the one hub.
Features:
- Works with the MT4300 or MT4300-C
- Operates up to 15 machines
- Requires a 12v DC power source; supplied with a 12v wall transformer
- Model R4300H4 - 4 Traps
- Model R4300H8 - 8 Traps
- Model R4300H15 - 15 Traps
|
4 Trap Hub: $308
8 Trap Hub: $515
15 Trap Hub: Call for Price |
|
|
R4300W Wobble Trap Receiver |
|
|
The R4300W will allow you to control the horizontal and vertical movement of any wobble machine and is also used to fire the machine.
Used with the wobble function of the MT4300-C |
|
|
|
